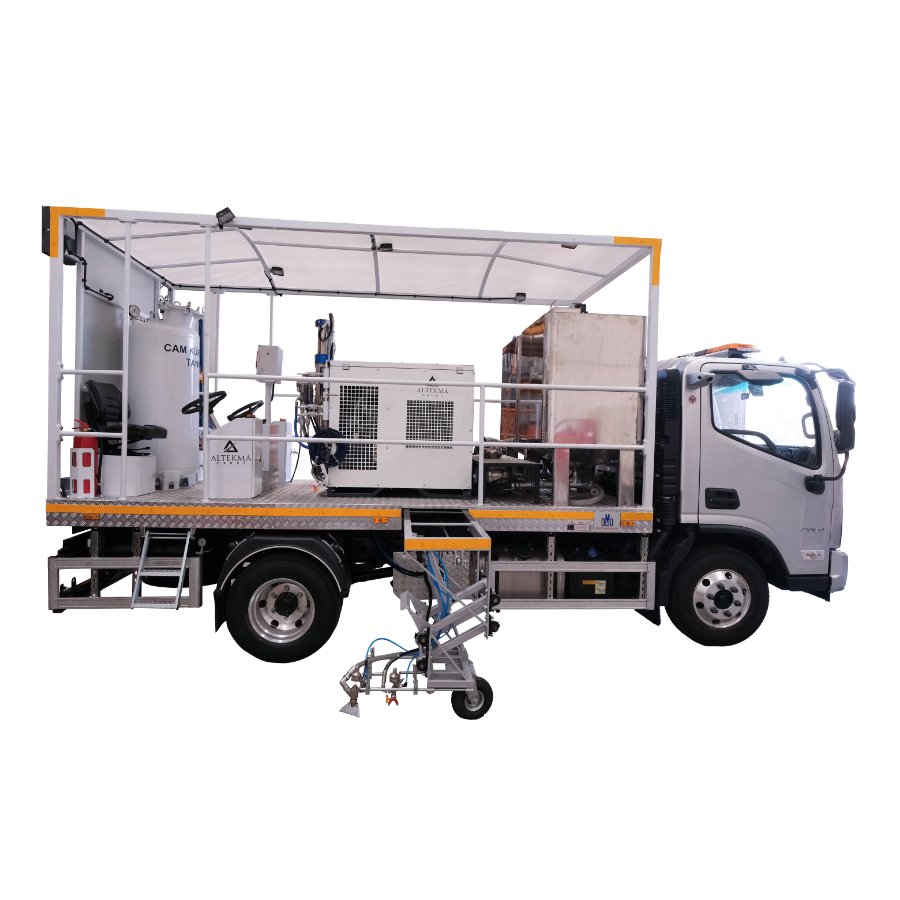

ALT 1600 - AIRLESS ROAD MARKING MOUNTED EQUIPMENT TRUCK (SUPERSTRUCTURE)

ALT 1600 Airless

High application efficiency Ideal solution for municipalities and highways

Do you have any questions about this product?

If you can't find the information you need, ask our experts.

Contact Us
ALT 1600 is a model specially designed and developed for long-distance intercity applicatons. Thanks to stainless steel high capacity tanks and paint pipelines, it is an ideal for water-based road marking applications.
Specifications
  • Paint gun 3 pcs airless & 1 pcs manual
  • Glass beads gun 3 pcs
  • Paint pumps Hydraulic airless pump is used in the system
    Hydraulic paint pump flow rate 20 l/min x 2 units
    Max. Pressure 230 bar
  • Paint tank capacity 1200 l (2 x 600 l)
  • Glass beads tank capacity 200 l
  • Fuel tank capacity 50 l
  • Solvent tank capacity 50 l
  • Hydraulic tank oil capacity 50 l
  • Engine Mounted engine min.20 hp Yanmar 3TNV88C-DYEM2 21.8 kW diesel/gas oil engine.
    *All the needs of the mounted part are supplied from this engine.
    *The air requirement of the system is 1.8 m3/min. It is provided with the compressor capacity.
  • Compressor Optionally, high-production capacity compressors can be used in accordance with the project for other situations besides meeting the system requirements, upon request.
  • Slides There is a hydraulic slide system that opens and closes to the right and left
  • Stripe control unit The line control unit has a touchscreen and offers two language options (Turkish, English). Additional language options can be added as an option. It can store any type of line form that complies with highway standards.
  • Guide pointer / Laser Pnaumatic & hydraulic pointer / Laser (optional)
  • Warning equipment Led signalization & 2 pcs beacon lambs
  • Lenght The mounted part may vary according to the carrier truck.
    For the design, please contact the authorized sales personnel.
